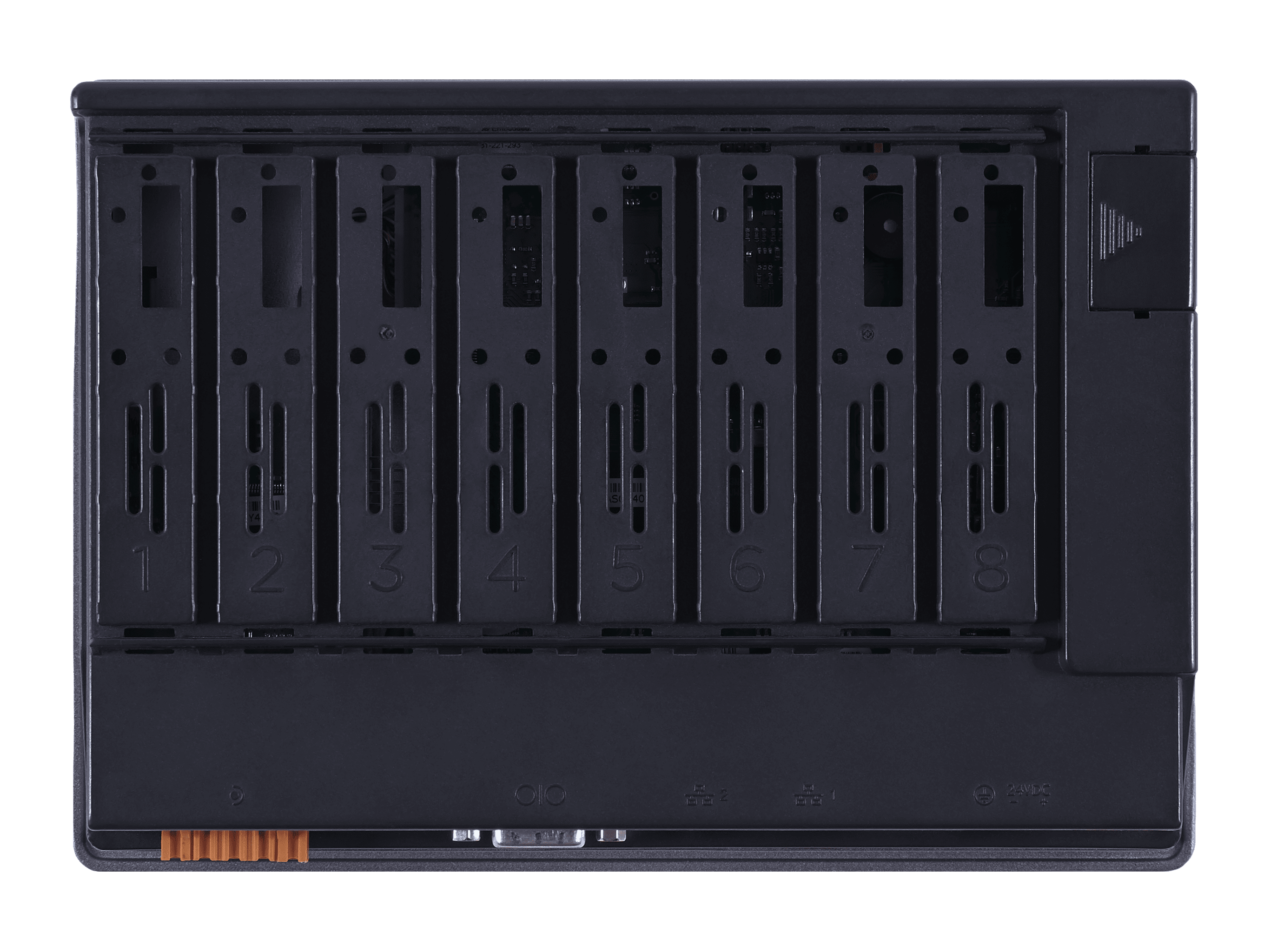

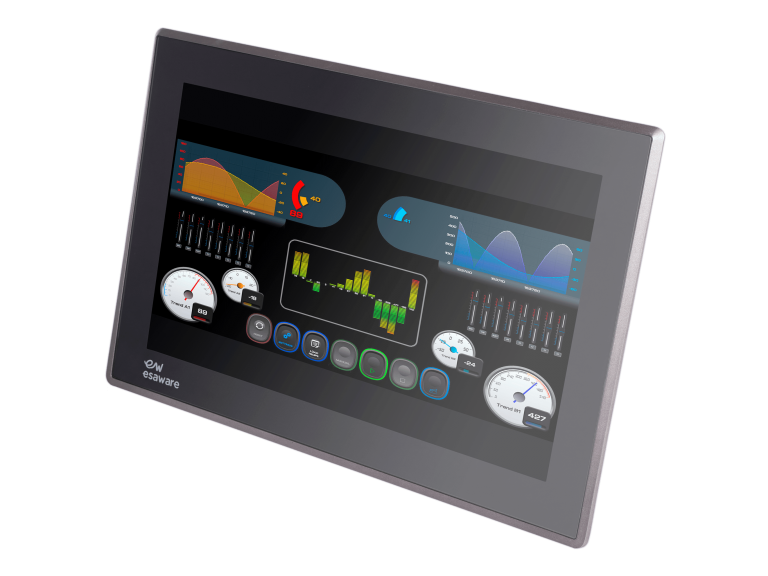

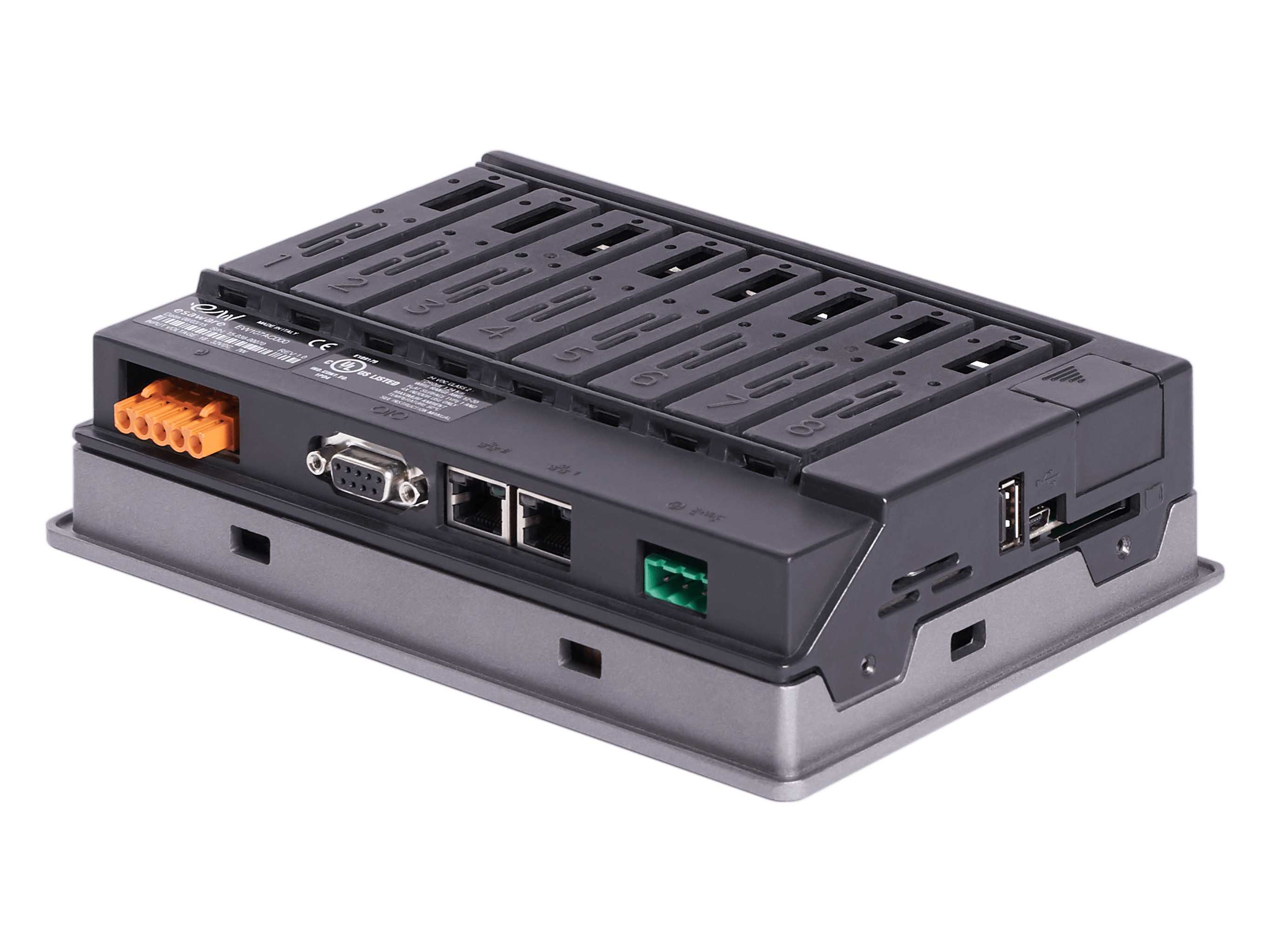

EW - ESAWARE HMI

Operating System: Windows Embedded Compact 7 Pro
LED wide screen display
Preloaded Everyware runtime
Supports SNTP Server and Client functionality
Aluminum front side with PTFE coating / INOX stainless steel housing
True flat touch screen
Status LED on the front panel
CPU: ARM Cortex-A8 1 GHz
RAM: DDR3
Internal memory: 3 GB
SDHC v2.0 support (up to 25 MB/s)
High-brightness display with 16 million colors
Complies with FDA 21 CFR Part 11

+91 8866687234

info@ct-automation.net

Contact Now + Inquire

Product parameters Order Code Relevant information

	EW104AA	EW107AA	EW112AA	EW115AA
Display Size	4,3"	7"	12,1"	15,6"
Display Technology	TFT	TFT	TFT	TFT
Display Colors	262K	16M	16M	16M
Display Backlight	LED	LED	LED	LED
Display Brightness (cd/m²)	400	600	400	300
Display Resolution (pixel)	480 x 272	800 x 480	1280 x 800	1366 x 768
Backlight life(hours)	50K	50K	50K	50K
Bezel Inox V2a		6mm thickness
RAM	256 MB DDR3	256 MB DDR3	512 MB DDR3	512 MB DDR3
Flash	3GB	3GB	3GB	3GB
Serial Ports	SP1 RS232/485- MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; Profibus	SP1 RS232/485- MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; Profibus	SP1 RS232/485- MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; Profibus	SP1 RS232/485- MPI-COM0 ; SP2 RS232/485-MPI-COM0 ; CAN ; Profibus
Ethernet	1 x 10/100Mb	2 x 10/100Mb	2 x 10/100Mb	2 x 10/100Mb
USB Ports	1 x USB Host + 1 x USB Device	1 x USB Host + 1 x USB Device	2 x USB Host + 1 x USB Device	2 x USB Host + 1 x USB Device
Slot	1 x SDHC/MMC	1 x SDHC/MMC	1 x SDHC/MMC	1 x SDHC/MMC
Power Supply (Vdc)	12-32	12-32	12-32	12-32
Consumption (W)	4	7	15	19
Operating Temperature (°C)	-10 … + 50 (non condensing)	-10 … + 50 (non condensing)	-10 … + 50 (non condensing)	-10 … + 50 (non condensing)
Storage Temperature (°C)	-20 … + 65	-20 … + 65	-20 … + 65	-20 … + 65
Humidity	<90% (non condensing)	<90% (non condensing)	<90% (non condensing)	<90% (non condensing)
External dimensions(W/H/D) (mm)	166 x 112 x 46 (61 with double port)	202 x 142 x 46	341 x 239 x 49	437 x 286 x 54,5
Cut-out dimensions (W/H) (mm)	158,5 x 104,5	195,0 x 135,0	326,0 x 227,0	422,5 x 271,5
Weight (kg)	0.5	0.8	2.5	4.5
Protection degree (front)	IP 66	IP 66	IP 66	IP 66
Certifications	CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22	CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22	CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22	CE / EN60068-2-6 / EN60068-2-27 / Humidity EN60068-2-30 / cULus (Certificate no. E189179) / EAC/ Directive 94/9/EC Atex Group II – Category 3 G-D Zone 2/22

Code	Description
EWT044A000	4.3” Wide TFT, 262K colors, CREW, SPI, ETH, USB A, USB B, MEMORY SLOT
EWT044AOSP	4.3” Wide TFT, 262K colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT
EWT044AOCN	4.3” Wide TFT, 262K colors, CREW, SPI1, CAN, ETH, USB A, USB B, MEMORY SLOT
EWT044AODP	4.3” Wide TFT, 262K colors, CREW, SPI1, DP, ETH, USB A, USB B, MEMORY SLOT
EWT070A000	7” Wide TFT, 16M colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT
EWT070AOSP	7” Wide TFT, 16M colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT
EWT070AOCN	7” Wide TFT, 16M colors, CREW, SPI1, CAN, ETH, USB A, USB B, MEMORY SLOT
EWT070AODP	7” Wide TFT, 16M colors, CREW, SPI1, DP, ETH, USB A, USB B, MEMORY SLOT
EWT122AOSP	12.1” Wide TFT, 16M colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT
EWT122AOCN	12.1” Wide TFT, 16M colors, CREW, SPI1, CAN, ETH, USB A, USB B, MEMORY SLOT
EWT122AODP	12.1” Wide TFT, 16M colors, CREW, SPI1, DP, ETH, USB A, USB B, MEMORY SLOT
EWT154AOSP	15.6” Wide TFT, 16M colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT
EWT154AOCN	15.6” Wide TFT, 16M colors, CREW, SPI1, CAN, ETH, USB A, USB B, MEMORY SLOT
EWT154AODP	15.6” Wide TFT, 16M colors, CREW, SPI1, DP, ETH, USB A, USB B, MEMORY SLOT
ZHEWT044AOCN	4.3” Wide TFT, 262K colors, CREW, SPI1, CAN, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZHEWT044AODP	4.3” Wide TFT, 262K colors, CREW, SPI1, DP, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZHEWT070A000	7” Wide TFT, 16M colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZHEWT070A0001	7” Wide TFT, 16M colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZHEWT122AOSP	12.1” Wide TFT, 16M colors, CREW, SPI1, SPI2, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
ZHEWT122AODP	12.1” Wide TFT, 16M colors, CREW, SPI1, DP, ETH, USB A, USB B, MEMORY SLOT (NO ATEX)
