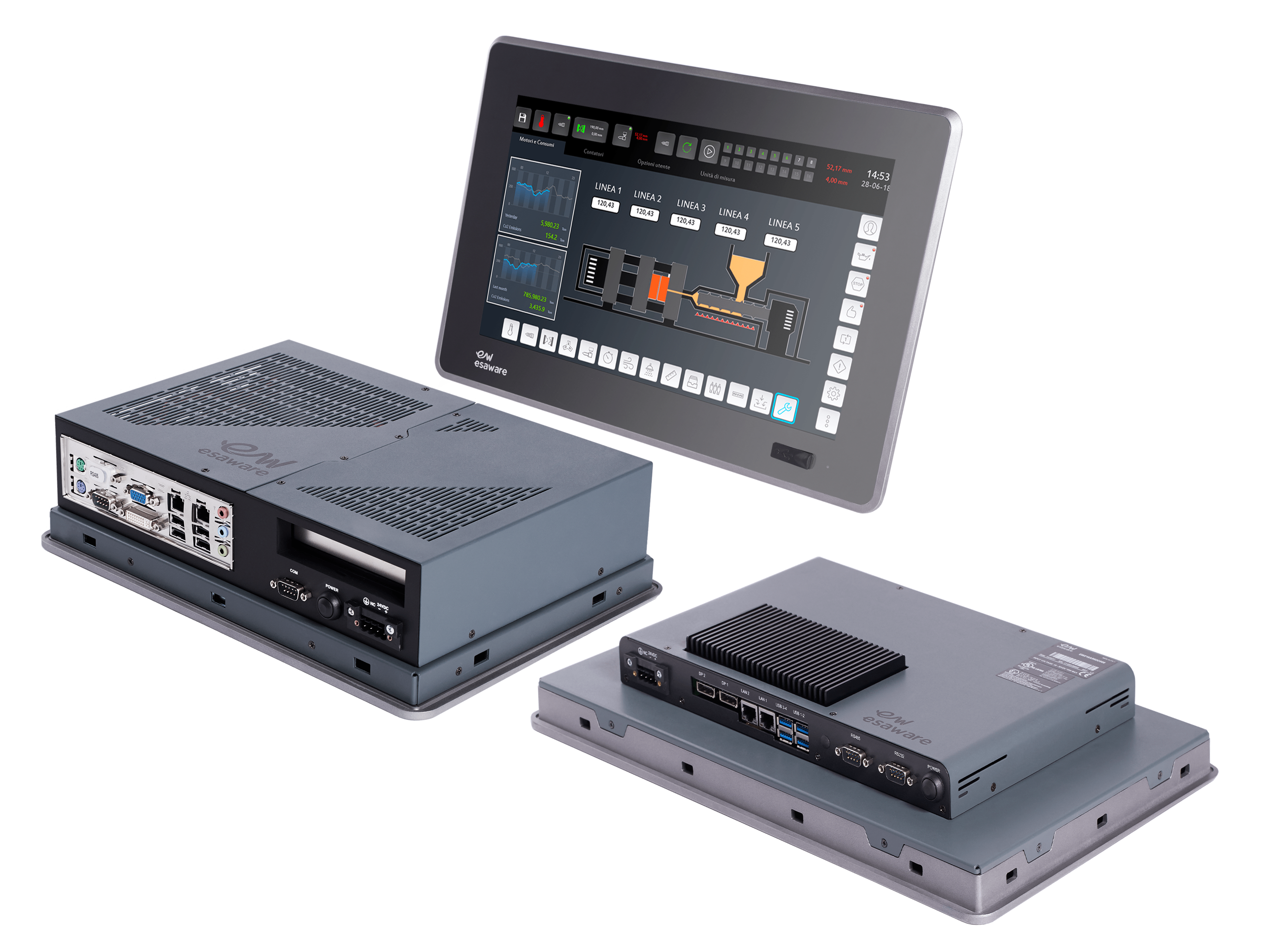

EW - ESAWARE IPC

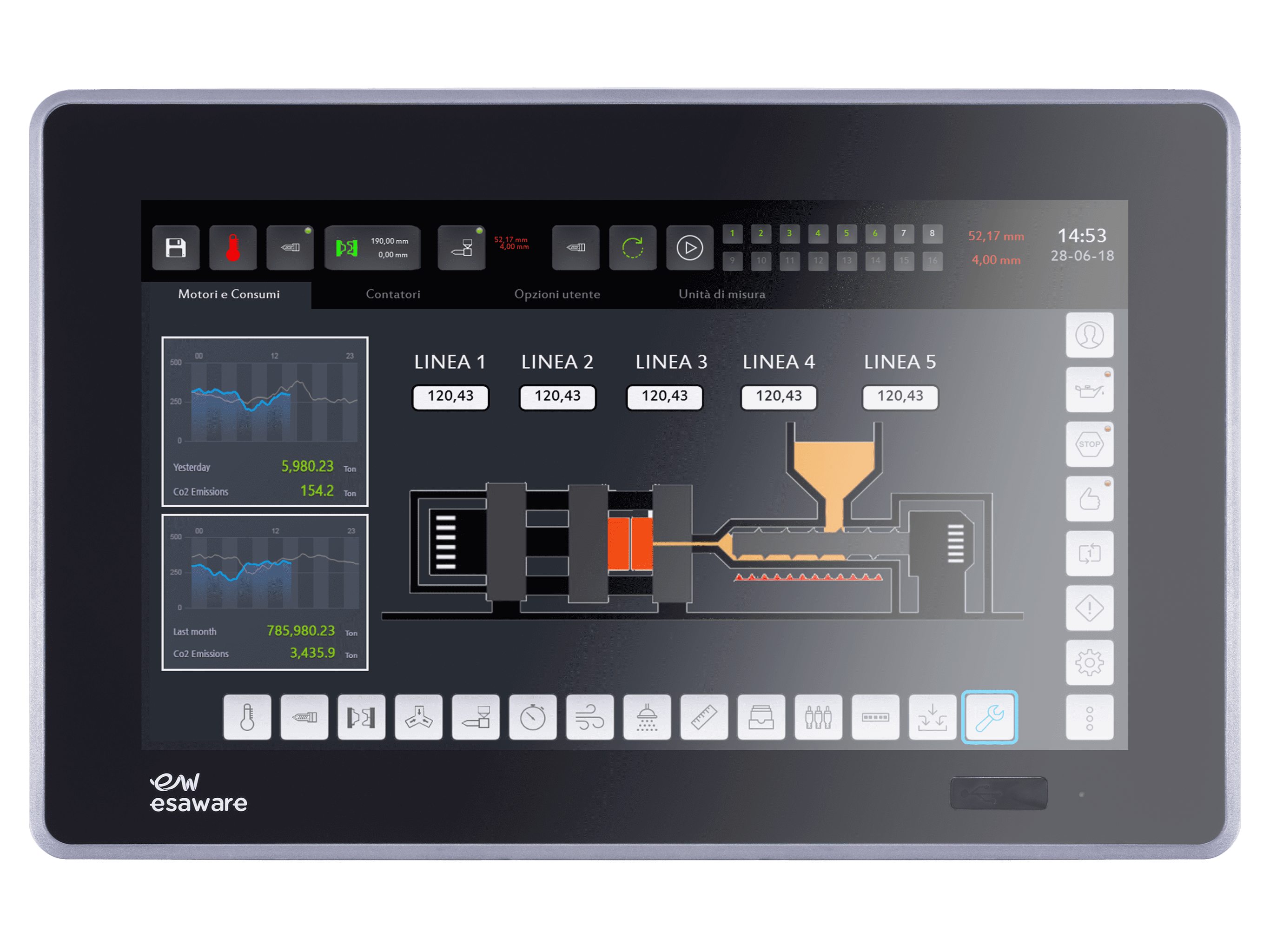

LCD 16:9 widescreen display with resistive and capacitive touchscreen.
Available in various sizes, from 12.1” to 21.5”.
Unique Twist design with PTFE non-stick finish prevents dust and dirt accumulation.
Wide choice of options and configurations.

+91 8866687234

info@ct-automation.net

Contact Now + Inquire

Product parameters Order Code Relevant information

	EW212	EW215	EW218	EW222
Display Size	12,1"	15,6"	18,5"	21,5"
Display Technology	TFT / 16,7 M	TFT / 16,7 M	TFT / 16,7 M	TFT / 16,7 M
Display Brightness (cd/m²)	400	400	300	300
Contrast	1000	1000	1000	5000
Viewing Angle	88/88/88/88	85/85/85/85	85/85/80/80	89/89/89/89
Display Resolution (pixel)	1280×800	1366×768	1366×768	1920×1080
Backlight life (hours)	50K
Touch Technology	Resistive (5 wires) / Capacitive (PCT 10 touches)
Bezel / Chassis	Aluminum with PTFE coating / Sheet Steel
CPU Fanless Atom	✔	✔	✔	✔
CPU Fanless Celeron	✔	✔	✔	✔
CPU Fan Intel® Core™ 3G	Intel Core i3-3120ME 2.4GHz	i5-3610ME 2.7GHz	i7-3610QE 2.3 GHz	–
CPU Fan Intel® Core™ 6G	Intel G3900TE 2.6GHz	i3-6100TE 2.7GHz	i5-6500TE 2.3GHz	i7-6700TE 2.4GHz
Chipset	NM10 Atom / SoC / QM87 / Q170
GPU embedded	GMA3650 650MHz	HD Graphics - 4000	HD Graphics 510-530	–
RAM (Atom Dual Core)	up to 4GB DDR3 SODIMM 1066MHz 204 pin
RAM (Celeron Quad Core)	up to 8GB DDR3L SODIMM 1333MHz 204 pin
RAM (Intel Core 3G)	up to 16GB DDR3 SODIMM 1333/1600MHz 204 pin
RAM (Intel Core 6G)	up to 32GB DDR4 SODIMM 1866/2133MHz 260 pin
RS232 / RS485	2× RS232 + RS232-422-485
USB Port IP66 front	– no capacitive –
USB Ports 2.0/3.0 rear	4/0 Atom	3/1 Celeron	4/0 iCore 3G	4/0 iCore 6G
Ethernet (Atom/Celeron)	2× 1Gb RJ45 Intel 82574L
Ethernet (Intel Core 3G)	2× 1Gb RJ45 Intel 82579LM / Realtek RTL8111DL
Ethernet (Intel Core 6G)	2× 1Gb RJ45 Intel I210AT / I219LM
VGA/DVI-D (Atom)	1× / 1× (dimmable LCD backlit)
VGA/DVI-D (Celeron)	1× / 1×
VGA/DVI-D (Intel Core 3G)	1× / 1×
DVI-D/HDMI (Intel Core 6G)	1× / 1×
Audio - PS2	1/0 (Atom-Celeron)	1/1 (Intel Core 3G)
CFast slot	1× external accessible slot
Mechanical Slot (Optional)	1× mPCIe + 1× PCIe x1 – 1× PCIe x16 – up to
Drives RAID 0/1	HDD min. 500GB / SSD min. 32GB / CFast min. 4GB - Option
Power Supply (VDC)	18...30 VDC (24V ±5% basic)
Operating Temp. (°C)	-10 ... +50 (non condensing)
Storage Temp. (°C)	-20 ... +60
Humidity	90% (non condensing)
External dimensions (W/H/D mm)	340,5×238,5×78,8	436,5×285,5×87,8	536,7×324,7×83,3	571,7×362,7×83,3
Cut-out dimensions (W/H mm)	326×227	422,5×275,1	486,5×307,5	554,5×345,5
Weight (kg)	4,5	6	10	10,5
Protection degree (front)	IP 66
Certifications	CE / EN61000-6-2 / EN61000-6-4 / EN60068-2-6 / EN60068-2-6/27/30 cUlus (Certificate no. E189179) / EAC / ATEX 2014/34/UE Group II Category 3 G D Zone 2/22
Operating Systems (32/64 bit)	WIN7 - WE7S - WIN8.1 - WIN10 IoT Enterprise LTSB 2016

Code	Description
EW212xxxxxxxx	12.1”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 7/10/11 IoT
EW215xxxxxxxx	15.6”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 7/10/11 IoT
EW218xxxxxxxx	18.5”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 7/10/11 IoT
EW222xxxxxxxx	21.5”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 7/10/11 IoT
