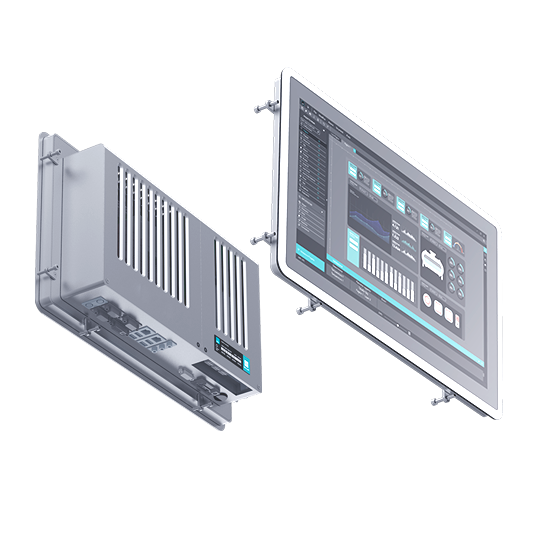

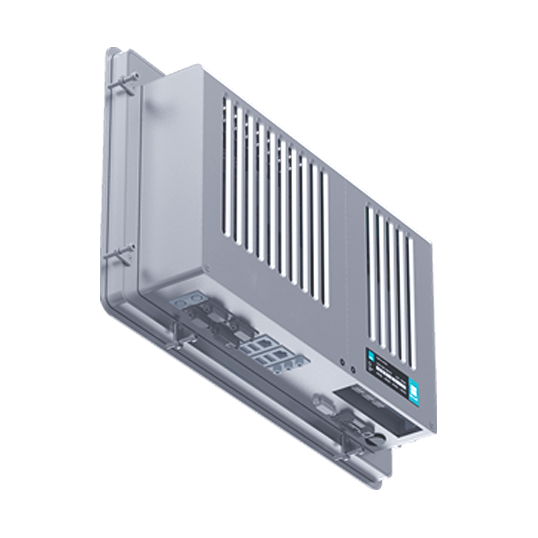

Lumia IPC

Operating System W10 – W11 – Linux
16/9 wide screen display with high resolution and high brightness available in 10.1”, 21.5”, 27” inches and resolution up to full HD.
Full glass front with capacitive touch
Panel mounting with IP66 protection rating on the front
Wide range of processors from Intel Celeron J6412 to 11th generation Intel i7
3 independent LAN ports
Up to 6 COM ports
4 USB 3.2 ports
2 HDMI video outputs

+91 8866687234

info@ct-automation.net

Contact Now + Inquire

Product parameters Order Code Relevant information

Feature	10.1”	15.6”	21.5”	27”
O.S.	Win10 IoT LTSC 2019/2021, Win11, Linux
Display Technology	TFT
Display Size	1280 x 800	1366 x 768 1920 x 1080	1920 x 1080	1920 x 1080
Display Backlight	LED
Display Colors	16M
Touch Technology	Capacitive
Bezel / Chassis	Aluminium
Processor	Celeron Quad Core J3455 1.5 (2.3) GHz Intel Core i3-7100U 2.4 GHz Intel Core i5-7300U Base 2.6 (3.5) GHz Intel Core i7-7600U 2.8 (3.9) GHz Celeron Quad Core J6412 – 2.0 (2.6) GHz Intel Core i3-1115G4 1.7 (4.1) GHz Intel Core i7-1165G7 2.8 (4.8) GHz
Video Output	Celeron Quad Core J3455 – 1x HDMI, 1x VGA Intel Core 7th generation – 1x DP++, 1x VGA Intel Core 11th generation – 2x HDMI
Chipset	SoC
GPU	J3455 – HD Graphics 500 i3-7100U / i5-7300U / i7-7600U – HD Graphics 620 J6412 – UHD Graphics for 10th Gen Intel Processors i3-1115G4 / i7-1165G7 – UHD Graphics for 11th Gen Intel Processors
RAM	J3455 – 4GB DDR3L, up to 8GB DDR3L i3-7100U / i5-7300U / i7-7600U – 4GB up to 16GB DDR4 J6412 / i3-1115G4 / i7-1165G7 – 8GB up to 32GB
Mass Storage	256GB / 512GB / 1TB SSD
Ethernet Port	J3455 – 2x 1Gb Intel I211AT i3-7100U / i5-7300U / i7-7600U – 2x 1Gb Intel I210AT / I219LM J6412 – 2x 1Gb Intel I225-V i3-1115G4 / i7-1165G7 – 2x Intel GBE LAN Chip
COM Port	J3455 / i3-7100U / i5-7300U / i7-7600U – 1x RS232/RS485
USB Port	Celeron J3455 – 2x USB 3.1 Intel Core 7th GEN – 4x USB 3.0 J6412 – 3x USB 3.0 + 3x USB 2.0 i3-1115 / i7-1165 – 6x USB 3.0
Power Supply (VDC)	12 – 32V DC
Consumption (W)	30W	35W	50W	50W
Operating Temperature (°C)	0 … +50°C
Storage Temperature (°C)	-20 … +60°C
Humidity	<90% (non-condensing)
External Dimensions (W/H/D) (mm)	269 x 190 x 42	402.4 x 251.7 x 45	546.4 x 337.9 x 73	669 x 406 x 73
Cut-out Dimensions (W/H) (mm)	258.5 x 179.5	390 x 239	531 x 323	652 x 389
Weight (kg)	5Kg	6.5Kg	8Kg	10Kg
Protection Degree	IP66 front - UL Type 4X and Type 12
Certifications	CE UL 61010 ATEX: II 3G Ex ec IIC T6 Gc X / II 3D Ex tc IIIC T75°C Dc IP66 X IECEx: Ex ec IIC T6 Gc X / Ex tc IIIC T75°C Dc IP66 X IECEx TUR 23.0004 X

Code	Description
Lumia210xxxxxxxx	10.1”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT
Lumia215xxxxxxxx	15.6”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT
Lumia222xxxxxxxx	21.5”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT
Lumia227xxxxxxxx	27”, With Fan, Upto 32 GB RAM, 1TB SSD, RAID 0/1, Win 10/11 IoT
