PLC Next

Secure Linux-based operating system
Real-time and deterministic operation for industrial automation
Supports IEC 61131-3 and high-level programming languages (C++, Python, etc.)
Integrated OPC UA, MQTT, and REST API for IIoT connectivity
Web-based HMI visualization and remote diagnostics
Expandable with Axioline F I/O modules for scalable solutions
Multiple Ethernet ports and USB interfaces for flexible integration
Numerous protocols supported such as: HTTP, HTTPS, FTP, OPC UA, SNTP, SNMP, SMTP, SQL, MySQL, DCP, etc.
DIN rail mounting and 24 V DC power supply
Suitable for pharma, process, machine building, and digitalization

+91 8866687234

info@ct-automation.net

Contact Now + Inquire

Product parameters Order Code Relevant information

Specification	AXC F 1152	AXC F 2152	AXC F 3152
Part Number	2404267	2404266	1184832
CPU	Dual-core ARM Cortex-A7, 800 MHz	Dual-core ARM Cortex-A9, 800 MHz	Quad-core ARM Cortex-A53, 1.3 GHz
RAM	512 MB DDR3	1 GB DDR3	2 GB DDR4
Flash Memory	2 GB eMMC	4 GB eMMC	8 GB eMMC
Ethernet Ports	2 x 10/100 Mbps	2 x 10/100/1000 Mbps	2 x 10/100/1000 Mbps
USB Ports	1 x USB 2.0	1 x USB 2.0	2 x USB 3.0
PROFINET Support	Device only	Device + Controller	Device + Controller
Max I/O Modules	63 Axioline F modules	63 Axioline F modules	63 Axioline F modules
Real-Time Capability	Yes	Yes	Yes
SD Card Slot	Yes	Yes	Yes
Programming	IEC 61131-3	IEC 61131-3 + High-level (C++, Python)	IEC 61131-3 + High-level (C++, Python)
Interfaces	USB, Ethernet	USB, Ethernet	USB, Ethernet, DisplayPort
Operating System	PLCnext (Linux)	PLCnext (Linux)	PLCnext (Linux)
Protocols	OPC UA, MQTT, REST	OPC UA, MQTT, REST	OPC UA, MQTT, REST

Article Number	Product Name	Description

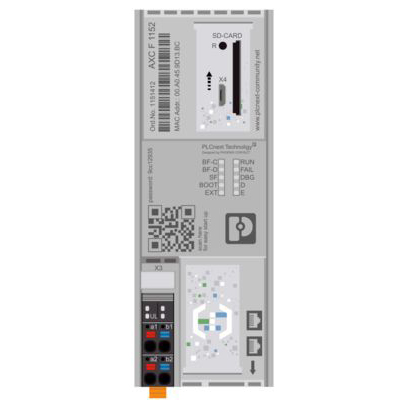

2404267	AXC F 1152	Entry-level PLCnext Controller with dual-core ARM CPU, 512MB RAM, ideal for compact automation solutions.
2404266	AXC F 2152	Mid-range PLCnext Controller with dual-core ARM Cortex-A9, 1GB RAM, for modular and IIoT-ready applications.

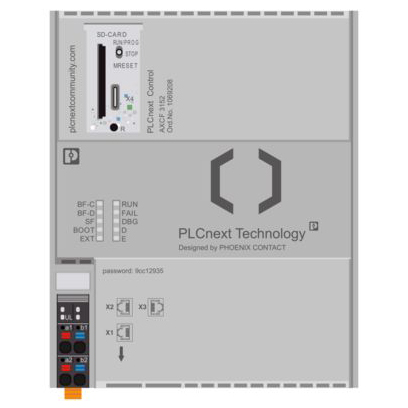

1184832	AXC F 3152	High-performance PLCnext Controller with quad-core CPU, 2GB RAM, designed for advanced automation and edge computing.
2702071	Axioline F DI16/1	16-channel digital input module, fast acquisition for industrial automation with 24 V DC signals.
2702073	Axioline F DO16/1	16-channel digital output module, robust and fast switching for controlling field devices.
2702075	Axioline F DI8/1 DO8/1	Combo I/O module with 8 digital inputs and 8 outputs, space-saving and flexible.
2702896	Axioline F AI4 U	4-channel analog voltage input module for precise acquisition of process signals.
2702897	Axioline F AO4 U	4-channel analog voltage output module to drive analog actuators or setpoints.
2702895	Axioline F AI4 I	4-channel analog current input module, compatible with 0–20 mA and 4–20 mA sensors.
2702898	Axioline F AO4 I	4-channel analog current output module for controlling analog actuators like valves.
2688291	Axioline F PT100	4 RTD inputs, high-accuracy module for connecting PT100 resistance temperature detectors.
2688293	Axioline F TC	Thermocouple input module, supports multiple thermocouple types for precise industrial temperature monitoring.
2701686	Axioline F DI16/1 120 V	Digital input module for 120 V AC industrial signals, robust for control cabinets.
2702500	Axioline F RIF-1	Relay module to integrate RIFLINE relays into Axioline system, suitable for switching higher loads.
2702402	Axioline F IL ADAPT	Interface module enabling use of Inline I/Os with Axioline F PLCnext controllers.
